Noctua NH-D15S chromax.Black, Premium Dual-Tower CPU Cooler with NF-A15 PWM 140mm Fan (Black)

Availability:In Stock

(0 reviews)

BHD 54.900

– +

Categories: Cooler

Product specification
Reviews (0)

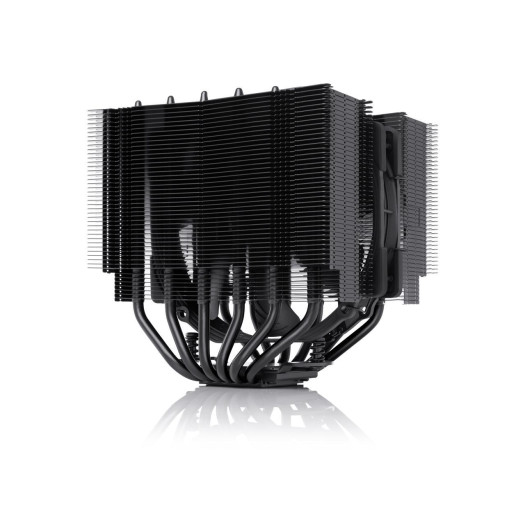

The NH-D15S chromax.black is an all-black version of Noctua’s award-winning NH-D15S premium-quality quiet CPU cooler. Thanks to the same asymmetrical dual-tower heatsink design and single NF-A15 PWM fan, it stays true to the NH-D15S’s successful formula of fusing dual-tower performance with excellent RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 multi-socket mounting system and Noctua’s enthusiast-grade NT-H1 thermal compound, the NH-D15S chromax.black is a premium choice for customers who seek a highly compatible dual-tower heatsink that looks just as great as it cools.


High-compatibility version of NH-D15 Compared to the award-winning NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.	Excellent RAM compatibility Thanks to its recessed lower fins, the NH-D15S provides 65mm clearance for RAM with tall heatspreaders or RGB illumination, making it compatible with most high-end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD, but also on LGA20xx where there are RAM slots on both sides of the socket.	Asymmetrical layout for better PCIe compatibility As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboards.	Colour-customisable Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15S chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.

Measurements

Height (without fans): 160 mm
Width (without fans): 150 mm
Depth (without fans): 135 mm
Height (with fans): 160 mm
Width (with fans): 150 mm
Depth (with fans): 135 mm
Weight (without fans): 980 g
Weight (with fans): 1150 g

Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specifications

Scope of delivery

Black NH-D15S heatsink
NF-A15 HS-PWM chromax.black premium fan
NT-H1 high-grade thermal compound
Black fan-clips for second NF-A15
NA-RC7 Low-Noise Adaptor (L.N.A)
Black SecuFirm2 mounting kit
Metal case badge

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

chromax.black design

The NH-D15S chromax.black is black from head to toe: featuring a black coated heatsink, black fans with black anti-vibration pads, black fan clips and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.


	NH-D15	NH-D15S	NH-D15 SE-AM4	NH-D15 chromax.black	NH-D15S chromax.black
LGA2066, LGA2011-0 & LGA2011-3	✓	✓	with NM-i20xx	✓	✓
LGA1700	✓	✓	with NM-i17xx-MP83	✓	✓
LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156)	✓	✓	with NM-i115x-1200	✓	✓
LGA775 & LGA1366	with NM-I3	with NM-I3	with NM-I3	with NM-I3	with NM-I3
Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356	X	X	X	X	X
Xeon LGA3647	X	X	X	X	X
Xeon LGA4189	X	X	X	X	X
AM5	✓	✓	✓	✓	✓
AM4	✓	✓	✓	✓	✓
sTRx4, sWRX8, TR4, SP3	X	X	X	X	X
