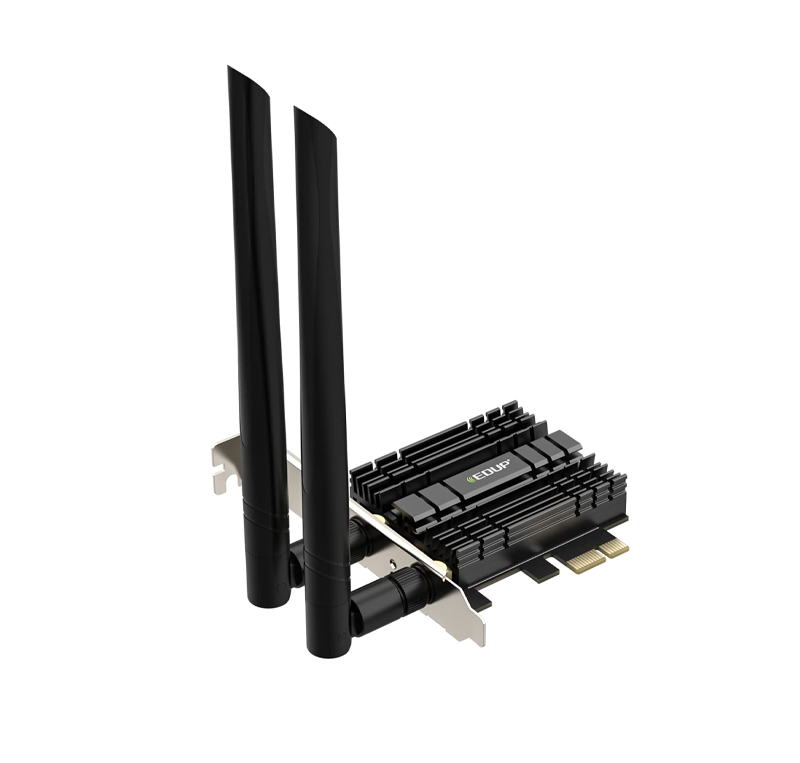

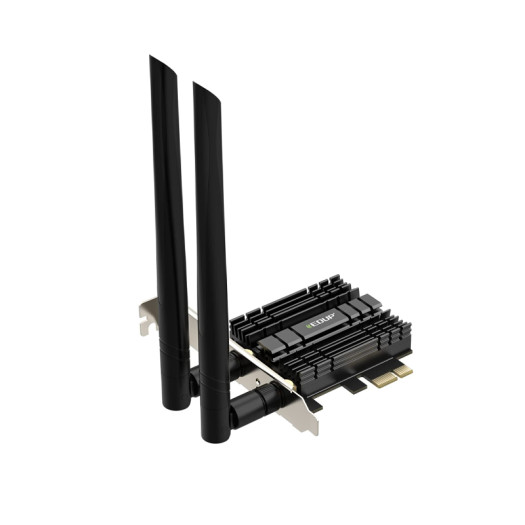

EDUP PCI-E WiFi 6 Network Card AX1800Mbps Bluetooth 5.2 Heat Sink 802.11AX 2.4Ghz/5.8Ghz Wireless PCIe Network Wi-Fi 6 Card PCI Express WiFi Adapters 6dBi Dual Band Antenna for Windows 10 64-bit

Availability:Out Of Stock

EDUP PCI-E WiFi 6 Network Card AX1800Mbps Bluetooth 5.2 Heat Sink 802.11AX 2.4Ghz/5.8Ghz Wireless PCIe Network Wi-Fi 6 Card PCI Express WiFi Adapters 6dBi Dual Band Antenna for Windows 10 64-bit - EP-9655GS

(0 reviews)

BHD 15.900

– +

Notify when available

Categories: Network

Product specification
Reviews (0)

Specification:

Model: 9655GS with Heat Sink
Type: PCIE Wi-Fi 6 Network Card with Bluetooth 5.2
Support System: Only windows 10 64-bit
Chipset: MTK7921LEN
IEEE WLAN Standard: 802.11a/b/g/n/ac/ax
Connection: Wi-Fi / Bluetooth
Interface: PCI-E/X1/X4/X8/X16; 9-pin usb for Bluetooth function
Works with PCI-E X1, X4, X8, X16 slot. ( Not for PCI slot )
Type of Network Card: Dual band
Transmission Rate : 2.4Ghz up to 600Mbps / 5.8Ghz up to 1200Mbps

Package Items:

1 * PCIe Wi-Fi 6 Network Card ; 2 * 6dBi Antenna ; 1 * CD disk ( Include Driver ) ;
1 * Small Chassis Baffle ; 1 * Screwdriver & 2 * Screws ; 1 * User Manual


Dual Band Transmission Rate : 2.4Ghz up to 600Mbps 5.8Ghz up to 1200Mbps	Chipset: MTK7921LEN Ony compatible with Windows 10 64-bit. Not work for any other OS	Support Interface: PCI-E/X1/X4/X8/X16; 9-pin usb for Bluetooth Compatible with IEEE 802. 11 ax/ac/b/g/n


Bluetooth 5.2 Technology: Expand the range of 4 x Blue-tooth 4.2 signal, no need to worry the signal will be weak in the room and waiting long time for transport the large files.	MU-MIMO Wireless Technology: Significantly improve the network quality, and the Internet speed is improved compared to ordinary AC network cards.	PCI-E Wi-Fi & Bluetooth Card: This card can help old desktop to receive wi-fi signal and connect multiple Bluetooth devices ( For example: Bluetooth mouse/ keyboard/printer/speaker and More )

Knowing the following will give you a better product experience

1. For desktop only. A blue-tooth power cable needs to be connected to the motherboard 9-pin interface, or the blue-tooth function won't work.
2. The specification of PCI-E wireless network card is 1800Mbps (2.4G: 600Mbps, 5G: 1200Mbps).
3. This Wi-Fi card will not boost the speed of original router, which only helps your computer to receive the router's signal and speed better.
4. It has nothing to do with the quality of this card when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is built-in Wi-Fi function in your desktop pc ).
